DSO / SSO Strip Sockets

Break Away Strip Socket : Soldertail DIP & SIP Strip Socket

SKU: SKU 23 Category:

DSO / SSO

Break Away Strip Socket : Soldertail DIP & SIP Strip Socket

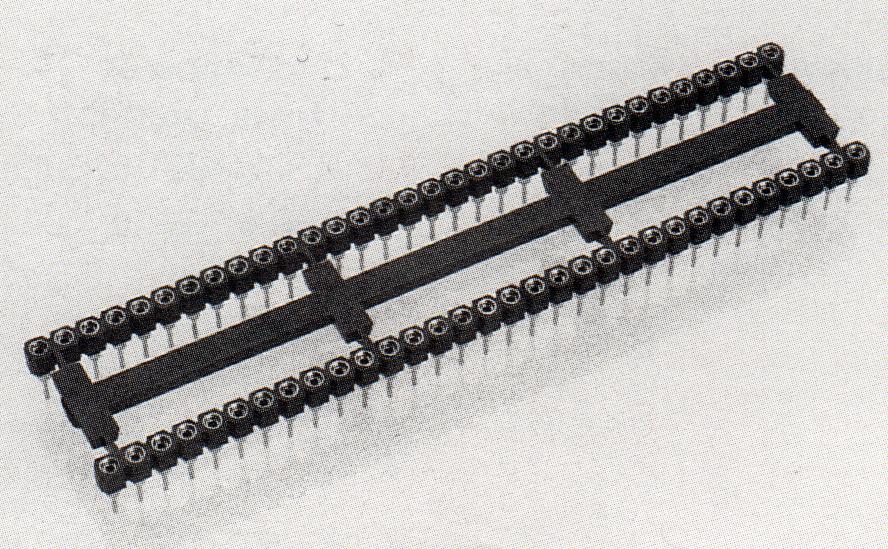

DSO

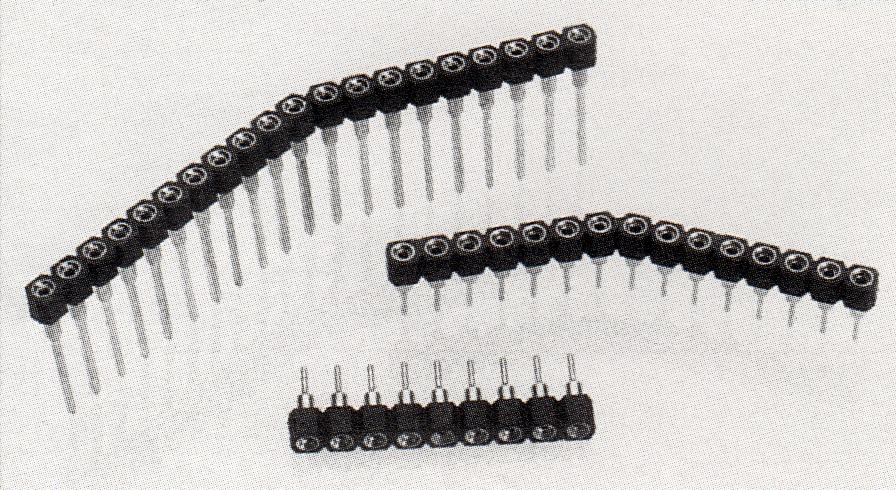

SSO


PART NUMBER

NUMBER OF PINS

DIMENSIONS

Terminal Style

A

B

C



DSO6XXXXXXX

4-128

*

.700 (17.78)

.600 (15.24)

Soldertail

PART NUMBER

NUMBER OF PINS

DIMENSIONS

Terminal Style

A

SSOXXXXXXX

2-64

See Figure 2

Soldertail



  • Molded plastic strip sockets can be divided into any length.
  • Ideal for custom socket applications.
  • Sockets are XY stackable.
  • Machined outer sleeve with BeCu inner contact.
  • Socket pins feature closed-end construction eliminating any solder wicking problems.
  • Socket pins available in a wide variety of styles and plating options.

TERMINAL STYLES


(E Dim.) Pin Number

A – .125 (3.18) …..3000

B – .143 (3.63) …..3080

C – .180 (4.57) …..3010

D – .275 (6.99) …..3190



ORDERING INFORMATION

DSO

0

18

TL

A

31

Series

DIP Spacing

Number of Pins

Plating of Sleeve

Solder Tail Corresponding

Plating of Inner Contact

Dual – DSO

0 – No Spacing (For Single-in-Line)

2 – 64 (Single Strips)

TL – Tin Lead 200µ” (5.08µm)

(E Dim.) Pin Number

30 – Gold 10µ” (0.25µm)

Single – SSO

6 – .600 (15.24) centers

4 – 128 (Dual Strips)

GH – Gold 10µ” (0.25µm)

A – .125 (3.18) …..3000

31 – Gold 30µ” (0.75µm)



GK – Gold 30µ” (0.75µm)

B – .143 (3.63) …..3080

36 – Tin lead 200µ” (5.08µm)

      TF – Tin 200µ” (5.08µm)

C – .180 (4.57) …..3010

34 – Tin 200µ” (5.08µm)


D – .275 (6.99) …..3190
