PT Bridge


PT Bridge

SKU: SKU 26 Category:

PT

Bridge

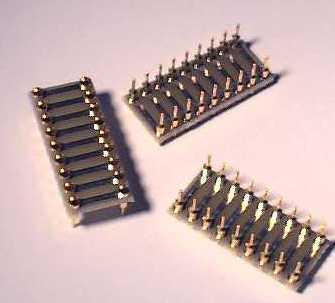

  • Bridge with FR4 insulator.
  • Connection : two side.
  • Thrue hole : metalization.
  • PT bridge pins available in a wide variety of
  • styles and plating options.
  • Packaged in tubes compatible with
  • automatic insertion equipment.



Standard Parts



DIMENSIONS (See Fig. 1)

PART NUMBER

NUMBER OF PINS

A

B

C

D

PT302XXXXX

2

.100 (2.54)

.400 (10.16)

.300 (7.62)

.063 (1.6)

PT304XXXXX

4

.200 (5.08)

.400 (10.16)

.300 (7.62)

.063 (1.6)

PT306XXXXX

6

.300 (7.62)

.400 (10.16)

.300 (7.62)

.063 (1.6)

PT308XXXXX

8

.400 (10.16)

.400 (10.16)

.300 (7.62)

.063 (1.6)

PT314XXXXX

14

.700 (17.78)

.400 (10.16)

.300 (7.62)

.063 (1.6)

PT316XXXXX

16

.800 (20.32)

.400 (10.16)

.300 (7.62)

.063 (1.6)

PT318XXXXX

18

.900 (22.86)

.400 (10.16)

.300 (7.62)

.063 (1.6)

PT422XXXXX

22

1.100 (27.94)

.500 (12.70)

.400 (10.16)

.063 (1.6)

PT624XXXXX

24

1.200 (30.48)

.700 (17.78)

.600 (15.24)

.063 (1.6)

PT628XXXXX

28

1.400 (35.56)

.700 (17.78)

.600 (15.24)

.063 (1.6)

PT632XXXXX

32

1.600 (40.64)

.700 (17.78)

.600 (15.24)

.063 (1.6)

PT640XXXXX

40

2.000 (50.80)

.700 (17.78)

.600 (15.24)

.063 (1.6)



PT

 FIG 1pt.jpg (68789 octets) FIG 2 3301.jpg (65753 octets)



ORDERING INFORMATION

PT

3

18

AU

C

Series

DIP Spacing

Pin Number

Plating 0f Sleeve

Loose Pin Number
PT 3 – .300 (7.62) centers

TL – Tin Lead 150µ” (3.80µm)

See Fig 2


4 – .400 (10.16) centers



AU – GoId 1Oµ” (0.25µm)

(E Dim.)


6 – .600 (15.24) centers

   GK – GoId 30µ” (0.75µm)

C – .125(3.18) . . . .3301


9 – .900 (22.86) centers

   TF – Tin (lead free) 150µ” (3.80µm)



Specifications:

  • Outer Sleeve – Brass per QQ-B-626.
  • Insulator – Glass-filled Polyester Rated to UL94V-O.
  • Operathg Temperature – -650C to +1250C.
  • PCB Hole Size – .035 +- .003 (0.89 +- 0.08) solder termination.
  • All Platings – Over 100 µ” (2.54 µm) minimum Nickel over 5 µ” (013 µm) minimum Copper.
