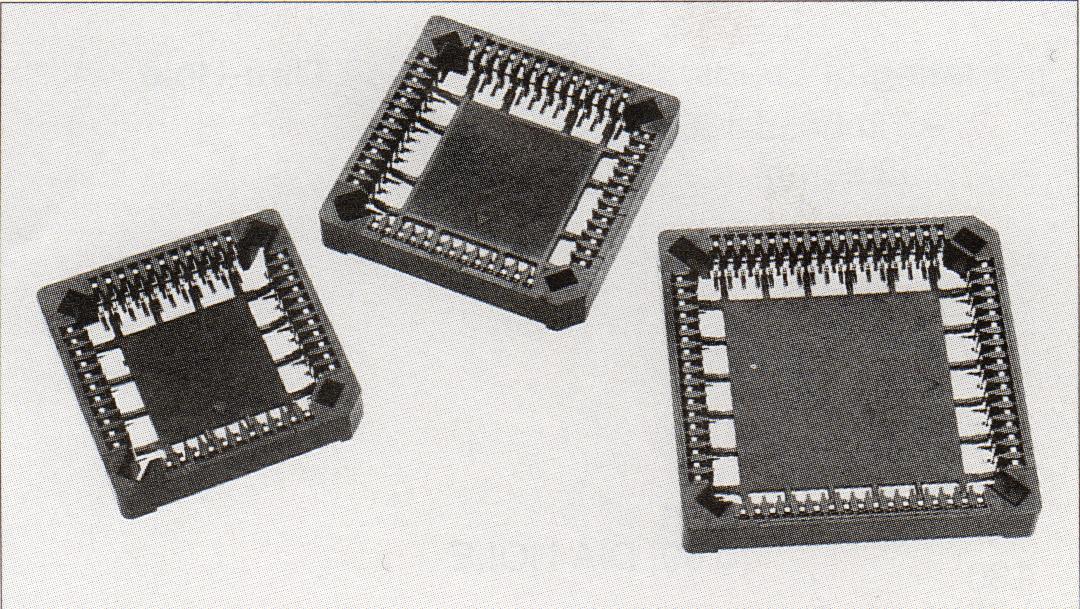

Surface Mount PLCC / PLCCA
Low Profile Surface Mount Plastic Leaded Chip Carrier Sockets
Surface Mount PLCC and PLCCA
Low Profile Surface Mount Plastic Leaded Chip Carrier Sockets
- Accepts JEDEC PLCC’s – MO-047AA-AH and MO-052 AE.
- Visual aids for registration.
- Low profile for high density PC board stacking.
- Standoffs provide clearance for heat dissipation and cleaning.
- Available in all popular sizes, with tube, or tape and reel packaging.
- Polarization pins available for all sizes.
PLCCA
|
PART NUMBER |
DIMENSION : inch(mm) |
||
|
TOTAL N° OF PINS |
A |
B |
C |
|
20 |
0.585 ( 14.86 ) |
0.200 ( 5.08 ) |
0.395 ( 10.03 ) |
|
28 |
0.685 ( 17.4 ) |
0.300 ( 7.62 ) |
0.495 ( 12.57 ) |
|
44 |
0.885 ( 22.48 ) |
0.500 ( 12.70 ) |
0.695 ( 17.65 ) |
|
52 |
1.000 ( 25.40 ) |
0.600 ( 15.24 ) |
0.795 ( 20.19 ) |
|
68 |
1.202 ( 30.53 ) |
0.800 ( 20.32 ) |
0.995 ( 25.27 ) |
|
84 |
1.400 ( 35.56 ) |
1.000 ( 25.40 ) |
1.195 ( 30.35 ) |
PLCCA
|
PLCCA |
20 |
TL |
SMT |
TR |
|
Series |
No. of Positions |
Plating of Leads |
Surface Mount |
TR – Tape and Reel |
| PLCCA |
20 |
TL – Tin Lead 150µ” 3.80µm |
P – Polarized Pins* |
|
| PLCC |
28 |
TF – Tin 150µ” 3.80µm |
Blank – without options |
|
|
032 (RECT.) |
||||
|
44 |
||||
|
52 |
||||
|
68 |
||||
|
84 |
||||
|
*Polarization pins not available with Tape and Reel packaging.
|
||||
PLCC SMT SOCKET TAPE & REEL
PLCCA
Materials
- Housing : pps. (u- 94v-o)
- Terminal : phosphor bronze tin platlng
- Specifications
- Current rating : 1 amp max
- Dielectric withstanding voltage : 500v ac r.m.s. For one minute
- Insulation resistance 1000 ohms max at 500 vdc
- Contact resistance 30mohms max
- Operating temperature : -55°c to +1o5°c
- Max. Processing temperature : 230°c for 30 to 60 seconds.
PLCCA
PRODUCT SPECIFICATIONS : DETAILS
PLCC
|
Standard Parts |
DIMENSIONS |
|||||
|
PART NUMBER |
NO. OF LEADS |
A (SQ.) |
B (SQ.) |
C (SQ.) |
D |
E |
|
PLCC020TFSMT |
20 |
.613 (15.57) |
.200 (5.08) |
.404 (10.26) |
.500 (12.70) |
.808 (20.52) |
|
PLCC028TFSMT |
28 |
.720 (18.29) |
.300 (7.62) |
.504 (12.80) |
.600 (15.24) |
1.122 (28.50) |
|
PLCC032TFSMT |
32 |
SEE BELOW |
||||
|
PLCC044TFSMT |
44 |
.920 (23.37) |
.500 (12.70) |
.704 (17.88) |
.800 (20.32) |
1.590 (40.39) |
|
PLCC052TFSMT |
52 |
1.020 (25.91) |
.600 (15.24) |
.804 (20.42) |
.900 (22.86) |
1.590 (40.39) |
|
PLCC068TFSMT |
68 |
1.220 (30.99) |
.800 (20.32) |
1.004 (25.50) |
1.100 (27.94) |
1.590 (40.49) |
|
PLCC084TFSMT |
84 |
1.420 (36.07) |
1.000 (25.40) |
1.204 (30.58) |
1.300 (33.02) |
2.062 (52.37) |
PLCC
|
32 Position Rectangular |
|||||||
|
A |
B |
C |
D |
E |
|||
|
LONG |
SHORT |
LONG |
SHORT |
LONG |
SHORT |
||
|
SIDE |
SIDE |
SIDE |
SIDE |
SIDE |
SIDE |
||
|
.820 (20.83) |
.720 (18.29) |
.400 (10.16) |
.300 (7.62) |
.600 (15.24) |
.504 (12.80) |
.700 (17.78) |
1.118 (28.40) |
PLCC
PLCC
Material Specifications :
- Contact – Phosphor Bronze
- Insulator – PPS, Polyphenylene Sulfide, Rated UL 94V-0, Suitable for Vapor Phase, IR Soldering
- Contact Plating – Tin 150µ” (3.80µm) over 50µ” (1.27µm) Nickel
- Carrier – Conductive Black HMS Styrene Alloy
- Sealing Tape – Polyester
- Reel – Carbon Filled High Impact Polystyrene
Performance Specifications :
- Current Rating – 1 ampere maximum
- Dielectric Withstanding Voltage – 600 VRMS
- Insulation Resistance –10,000 megohms minimum
- Operating Temperature – -55° C to 105°C
- Capacitance – 1 picofarad maximum
- Durability – 25 cycles minimum
- Contact Resistance – 30 milliohms maximum
