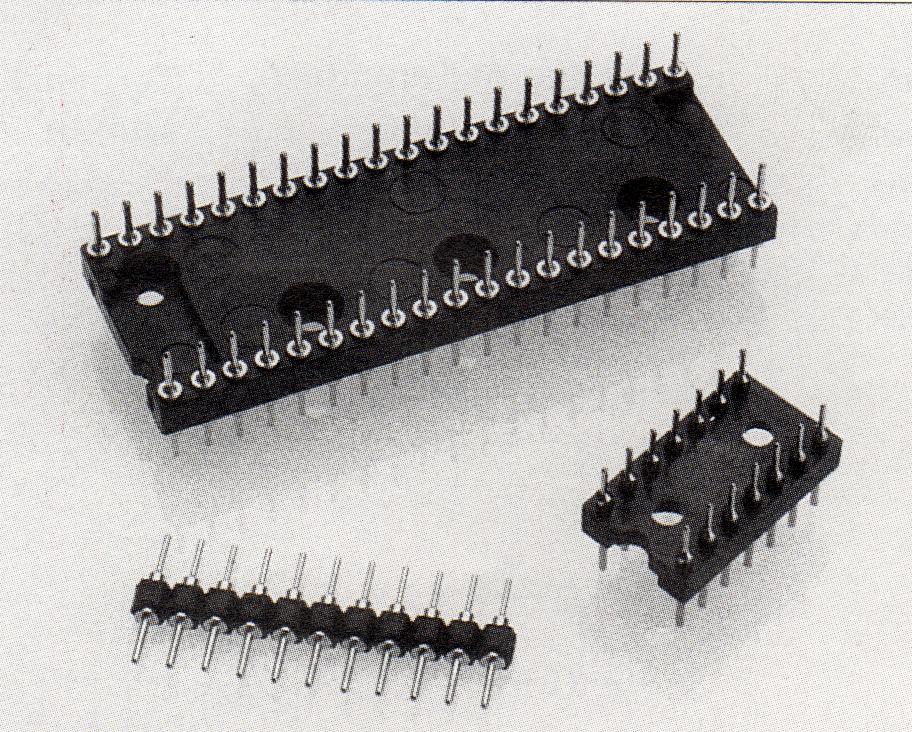

USC / SSC / SC Adapters
Plug-in Dip & Sip Adaptors
USC / SSC / SC
Plug-in Dip & Sip Adaptors
- Open and closed insulators.
- Adapters are XY stackable.
- Precision machined terminals.
- Used for board-to-board connections.
- Large variety of styles.
- Break-away strips available in lengths of 2-64, breakable at .100 (2.54) increments.
STANDARD PARTS ( DIP ADAPTERS )
|
PART NUMBER |
NUMBER OF PINS |
DIMENSIONS (See Fig. 1) |
||||
|
A |
B |
C |
D (Open) |
D (Closed) |
||
|
USC306XXX |
6 |
.300 (7.62) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.093 (2.36) |
|
USC308XXX |
8 |
.400 (10.16) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.093 (2.36) |
|
USC314XXX |
14 |
.700 (17.78) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.125 (3.18) |
|
USC316XXX |
16 |
.800 ( 20.32) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.125 (3.18) |
|
USC318XXX |
18 |
.900 (22.86) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.125 (3.18) |
|
USC320XXX |
20 |
1.000 (25.40) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.125 (3.18) |
|
USC422XXX |
22 |
1.100 (27.94) |
.500 (12.70) |
.400 (10.16) |
.093 (2.36) |
.125 (3.18) |
|
USC324XXX |
24 |
1.200 (30.48) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.110 (2.79) |
|
USC624XXX |
24 |
1.200 (30.48) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
.125 (3.18) |
|
USC328XXX |
28 |
1.400 (35.56) |
.400 (10.16) |
.300 (7.62) |
.110 (2.79) |
.125( 3.18) |
|
USC628XXX |
28 |
1.400 (35.56) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
N/A |
|
USC632XXX |
32 |
1.600 (40.64) |
.700 (17.78) |
.600 (15.24) |
.119 (3.02) |
.110 (2.79) |
|
USC640XXX |
40 |
2.000 (50.80) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
.125 (3.18) |
|
USC648XXX |
48 |
2.400 (60.96) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
N/A |
|
USC964XXX |
64 |
3.200 (81.28) |
1.000 (25.40) |
.900 (22.86) |
.093 (2.36) |
N/A |
STANDARD PARTS ( SIP ADAPTERS )
|
PART NUMBER |
NUMBER OF PINS |
DIM. F (See Fig. 2) |
|
SSC020XXX |
20 |
2.000 (50.80) |
|
SSC032XXX |
32 |
3.200 (81.28) |
|
SSC064XXX |
64 |
6.400 (162.56) |
TERMINAL STYLES : pins1
|
FIG 1 |
FIG.2 |
|
|
|
|
PIN TYPE |
FIG |
A |
B | C | D | E |
LOOSE PIN NUMBER |
|
FAA |
1 |
.154 (3.92) |
.156 (3.95) |
.165 (4.20) |
.475 (12.07) |
.024 (0.62) |
3050 |
|
FBB |
1 |
.154 (3.92) |
.156 (3.95) |
.124 (3.15) |
.434 (11.02) |
.019 (0.48) |
3168 |
|
FCC |
1 |
.119 (3.02) |
.156 (3.95) |
.165 (4.20) |
.440 (11.17) |
.024 (0.62) |
3155 |
|
FDD |
1 |
.533 (14.05) |
.156 (3.95) |
.177 (4.50) |
.886 (22.50) |
.030 (0.76) |
3158 |
|
BEE |
1 |
.120 (3.05) |
.156 (3.55) |
.093 (2.35) |
.352 (8.94) |
.020 (0.50) |
3093 |
|
BFF |
1 |
.120 (3.05) |
.156 (3.55) |
.262 (6.66) |
.522 (13.26) |
.020 (0.50) |
3094 |
|
AGG |
1 |
.187 (4.75) |
.156 (3.95) |
.165 (4.20) |
.476 (12.10) |
.024 (0.62) |
3009 |
|
FZZ |
1 |
.154 (3.92) |
.125 (3.18) |
.165 (4.20) |
.475 (12.07) |
.019 (0.48) |
3137 |
|
DKK |
2 |
.335 (8.51) |
.125 (3.18) |
.125 (3.18) |
.585 (14.86) |
.019 (0.48) |
80152 |
ORDERING INFORMATION
|
USC |
6 |
24 |
TL |
FZZ |
|
Styles |
DIP Spacing |
Number of Pins |
Plating of Terminals |
|
|
USC – Open Insulator |
0 – Strip Socket Only |
TL – Tin Lead 200µ” (5.08µm) |
FAA |
|
|
SC – Closed Insulator |
3 – .300 (7.62) centers |
GH – GoId 10µ” (0.25µm) |
FBB |
|
| SSC – Strip (Breakaway) |
4 – .400 (10.16) centers |
TF – Tin 200µ” (5.08µm) |
FCC |
|
|
6 – .600 (15.24) centers |
FDD |
|||
|
9 – .900 (22.86) centers |
BEE |
|||
|
BFF |
||||
|
AGG |
||||
|
FZZ |
||||
| DKK |
Specifications :
- Terminal – Brass per QQ-B-626
- Operating Temperature – -65° C to + 125° C
- PCB Hole Size – .035 +/- .003 (0.89 +/- 0.08) solder termination
- All Platings – Over 50µ” (1.27µm) Nickel over 5µ” (0.13µm) Copper
- Insulator – Glass-filled Polyester Rated to UL94V-O
- Soldering – Wave soldering only (1750C for 15 seconds)
