UW / SW / W Adapters

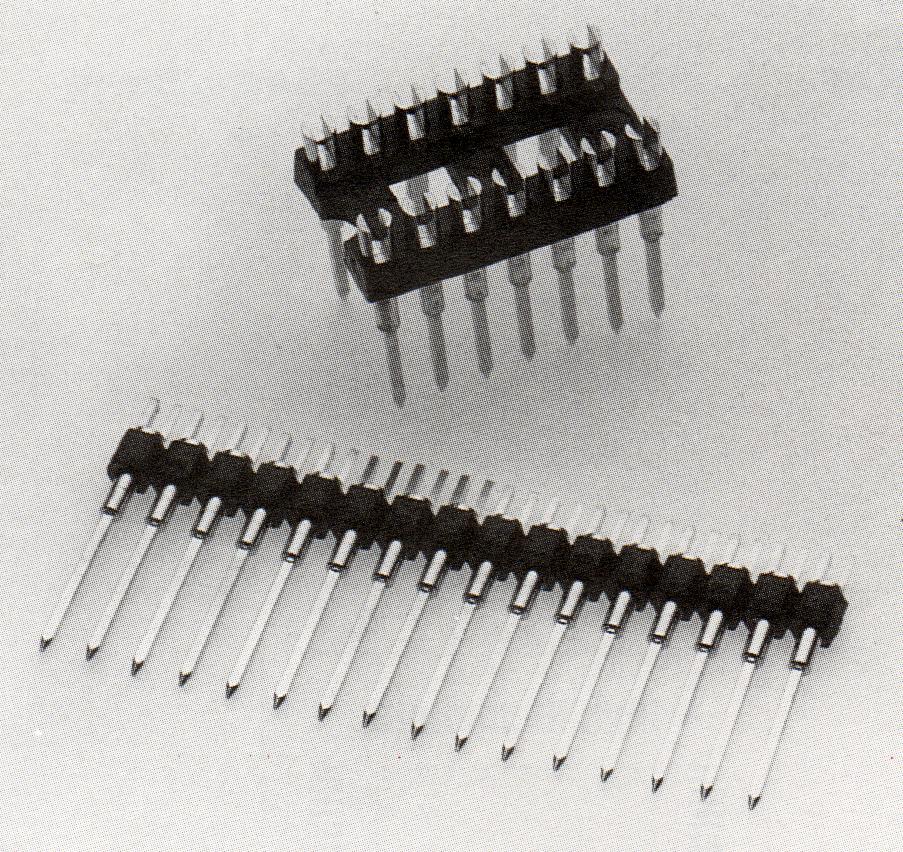

Wire-Wrap® Dip & Sip Strip Adapters
UW / SW / W
Wire-Wrap®Dip & Sip Strip Adapters
- Open and closed insulators.
- Adapters are XY stackable.
- Precision machined pins.
- Used for interposing discrete components.
- Large variety of styles.
- Break-away strips available in lengths of 2-64, breakable at .100 (2.54) increments.
- Wire-Wrap® lengths are available in 1, 2 and 3 levels.
STANDARD PARTS ( DIP ADAPTERS )
|
PART NUMBER |
NUMBER OF PINS |
DIMENSIONS (See Fig. 1) |
||||
|
A |
B |
C |
D (Open) |
D (Closed) |
||
|
UWX306XXX |
6 |
.300 (7.62) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.093 (2.36) |
|
UWX308XXX |
8 |
.400 (10.16) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.093 (2.36) |
|
UWX314XXX |
14 |
.700 (17.78) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.125 (3.18) |
|
UWX316XXX |
16 |
.800 ( 20.32) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.125 (3.18) |
|
UWX318XXX |
18 |
.900 (22.86) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.125 (3.18) |
|
UWX320XXX |
20 |
1.000 (25.40) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.125 (3.18) |
|
UWX422XXX |
22 |
1.100 (27.94) |
.500 (12.70) |
.400 (10.16) |
.093 (2.36) |
.125 (3.18) |
|
UWX324XXX |
24 |
1.200 (30.48) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
.110 (2.79) |
|
UWX624XXX |
24 |
1.200 (30.48) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
.125 (3.18) |
|
UWX328XXX |
28 |
1.400 (35.56) |
.400 (10.16) |
.300 (7.62) |
.110 (2.79) |
.125( 3.18) |
|
UWX628XXX |
28 |
1.400 (35.56) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
N/A |
|
UWX632XXX |
32 |
1.600 (40.64) |
.700 (17.78) |
.600 (15.24) |
.119 (3.02) |
.110 (2.79) |
|
UWX640XXX |
40 |
2.000 (50.80) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
.125 (3.18) |
|
UWX648XXX |
48 |
2.400 (60.96) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
N/A |
|
UWX964XXX |
64 |
3.200 (81.28) |
1.000 (25.40) |
.900 (22.86) |
.093 (2.36) |
N/A |
STANDARD PARTS ( SIP ADAPTERS )
|
PART NUMBER |
NUMBER OF PINS |
DIM. F (See Fig. 2) |
|
SWX020XXX |
20 |
2.000 (50.80) |
|
SWX032XXX |
32 |
3.200 (81.28) |
|
SWX064XXX |
64 |
6.400 (162.56) |
TERMINAL STYLES
| 3003 | 3002 | 3005 |
 |
 |
 |
 |
 |
ORDERING INFORMATION
|
U |
W |
A |
6 |
24 |
TL |
3 |
|
Styles |
Corresponding |
DIP Spacing |
Number of Pins |
Plating of Terminals |
Terminal Length |
|
|
U – Open Insulator |
Terminal Loose Style Pin Number |
0 – Strip Socket Only |
TL – Tin Lead 150µ” (3.80µm) |
(E Dimension) |
||
| TF – Tin 150µ” (3.80µm) | ||||||
|
S – Strip (Breakaway) |
A………………..3003 |
3 – .300 (7.62) centers |
GH – GoId 10µ” (0.25µm) |
3 – 3 LeveI – .500 (12.70) |
||
|
(Leave Blank for Closed Insulator)
|
C………………..3002 |
4 – .400 (10.16) centers |
||||
|
D………………..3005 |
6 – .600 (15.24) centers |
|||||
|
9 – .900 (22.86) centers |
||||||
NOTE : For detailed insulator drawings, see pages 2 and 3.
Specifications :
- Terminal – Brass per QQ-B-626
- Operating Temperature – -65° C to +125° C
- All Platings – Over 50µ” (1.27µm) Nickel over 5µ” (0.13µm) Copper
- Insulator – Glass-filled Polyester Rated to UL94V-O
- PCB Hole Size – .040 +/- .003 (1.02 +/- 0.08) solder termination
