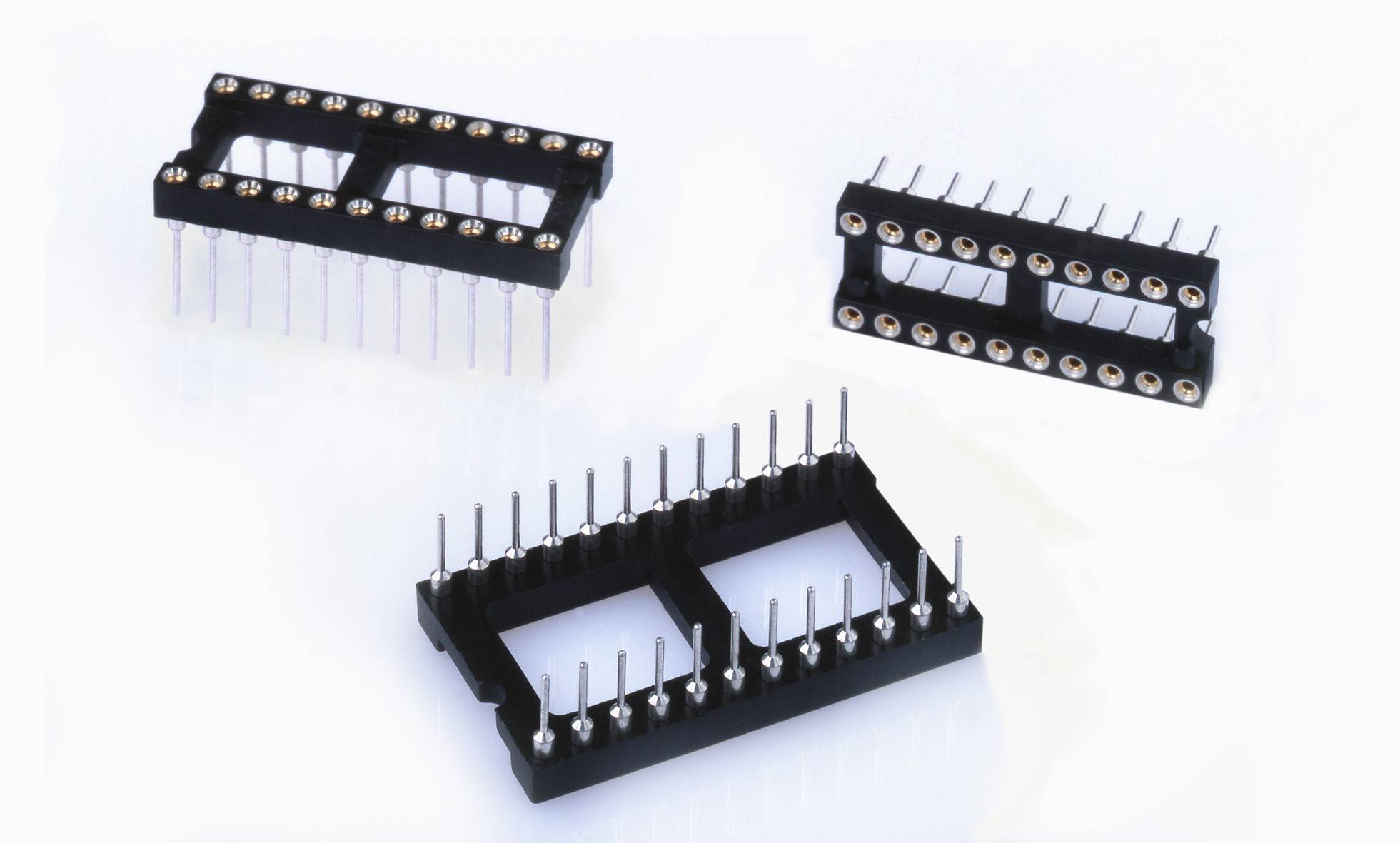

DIP 2.54mm pitch, Sockets, Solder tail

DIP 2.54mm pitch / Sockets / Solder tail

Mating pin 0.47mm / Open and closed frame precision

SERIES 0650, 0610, 0640, 0630, 0911, 0102, 0400, 0300



Category: Tags: , ,

Mating pin 0.47mm / Open and closed frame precision

SERIES 0650, 0610, 0640, 0630, 0911, 0102, 0400, 0300

Technical and electrical data

Temperature range : -55°C to +125°C
Insulator body : PCT, high temperature
Pin (sleeve) : Screw machined brass
Contact : SC4 stamped and formed BeCu (17200) Gold or tin plated, accepts Ø0.40-0.56 or rectangular 0.25×0.45
Insertion : Ø0.43 test pin: 320gr max
Extraction : Ø0.43 test pin: 50gr min (Other forces upon request)
Rated current : 1A
Maxi working voltage : 100VRMS / 150 Vdc
Contact resistance : 10 mΩ max
Dielectric strength : 1000 VRMS min

Plating (standard)
Pin .F = Tin
Clip .0 = Flash gold

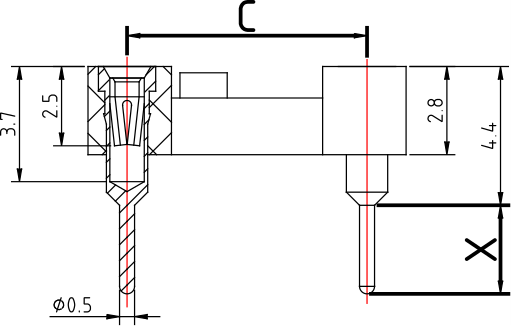

DIP 2.54mm pitch-Sockets-Solder tail-Draw

Length [x] according to type of PIN

Dimensions in [mm]

DIP dimensions

A B C Number of contacts Series Open frame Series Closed frame
12.6 7.6 5.08 10 0650 ——
(NP/2) x 2.54 10.1 7.62 04, 06, 08, 10, 12, 14, 16, 18, 20, 22, 24, 28* 0610 0102
(NP/2) x 2.54 12.6 10.16 20, 22, 24, 28*, 32* 0640 0400
(NP/2) x 2.54 17.7 15.24 10, 24, 28, 32, 36, 40, 42, 48, 50*, 52* 0630 0300
(NP/2) x 2.54 25.3 22.86 50, 52, 64 0911 ——

*Novalid for closed frame

Order code

The product codes contains the following information :

series – H – number of contacts – type of pin – pin plating – clip plating

Example :

0610 SeriesH High temperature20 Number of contacts.CC Type of pin.FPin plating .0Clip plating

Variants

  • Insulator more than 16 contacts. For special without center bar, replace “0” by “1”: 0611CC.F.0
  • Inner spring type SC6.VLI, add “B” after “F”: 0610H20.CC.FB0 (other clips upon request)
  • For soft brass pin, add “A” after “H”: 0610HACC.F.0
