ULX / LX / SLX

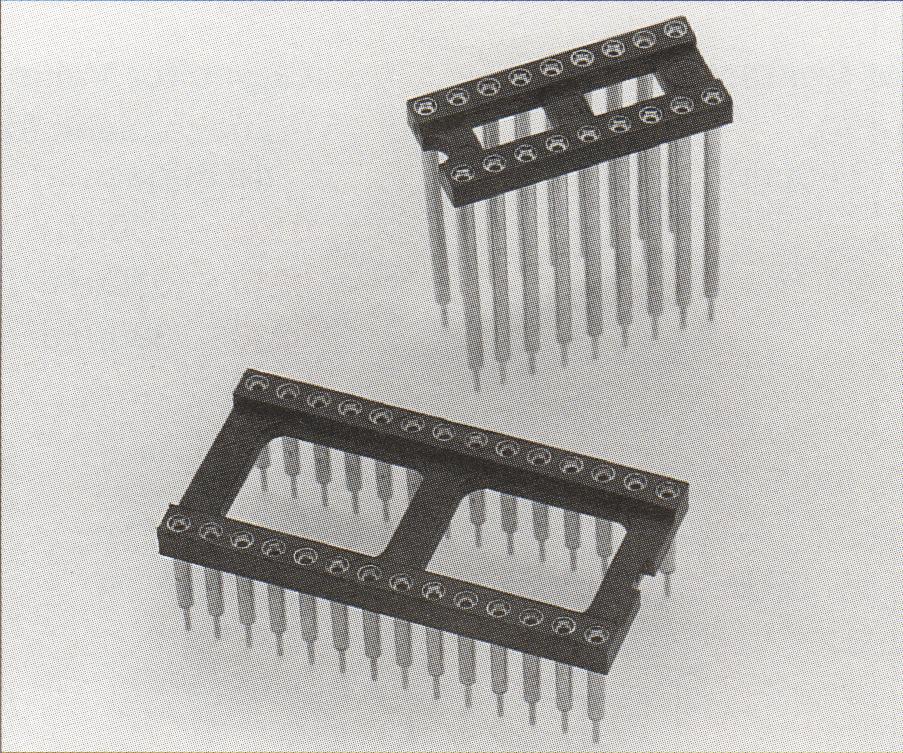

Elevator sockets and Strips
Elevator sockets and Strips
- Open and closed frame insulators available.
- Sockets are XY stackable.
- Machined outer sleeve with BeCu inner contact.
- SIP strips break-away into any required length.
- Elevator socket pins available in a wide variety of standoff heights and plating options.
|
Standard Parts |
DIMENSIONS (See Fig. 1) |
||||
|
PART NUMBER OPEN FRAME |
NUMBER OF PINS |
A |
B |
C |
D |
|
US0306XXXXX |
6 |
.300 (7.62) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
US0308XXXXX |
8 |
.400 (10.16) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
US0314XXXXX |
14 |
.700 (17.78) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
US0316XXXXX |
16 |
.800 (20.32) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
US0318XXXXX |
18 |
.900 (22.86) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
US0320XXXXX |
20 |
1.000 (25.40) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
US0422XXXXX |
22 |
1.100 (27.94) |
.500 (12.70) |
.400 (10.16) |
.093 (2.36) |
|
US0324XXXXX |
24 |
1.200 (30.48) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
US0624XXXXX |
24 |
1.200 (30.48) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
US0328XXXXX |
28 |
1.400 (35.56) |
.400 (10.16) |
.300 (7.62) |
.125 (3.18) |
|
US0628XXXXX |
28 |
1.400 (35.56) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
US0632XXXXX |
32 |
1.600 (40.64) |
.700 (17.78) |
.600 (15.24) |
.125 (3.18) |
|
US0640XXXXX |
40 |
2.000 (50.80) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
US0648XXXXX |
48 |
2.400 (60.96) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
US0964XXXXX |
64 |
3.200 (81.28) |
1.000 (25.40) |
.900 (22.86) |
.093 (2.36) |
Special
|
SIP SOCKET |
NUMBER OF PINS |
DIMENSION F (See Fig. 2) |
|
SLX020XXXXX |
20 |
2.000 (50.80) |
|
SLX032XXXXX |
32 |
3.200 (81.28) |
|
SLX064XXXXX |
64 |
6.400 (162.56) |
|
Standard Parts |
DIMENSIONS (See Fig. 1) |
||||
|
PART NUMBER CLOSED FRAME |
NUMBER OF PINS |
A |
B |
C |
D |
|
S0308XXXXX |
8 |
.400 (10.16) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
S0314XXXXX |
14 |
.700 (17.78) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
S0316XXXXX |
16 |
.800 (20.32) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
S0318XXXXX |
18 |
.900 (22.86) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
S0320XXXXX |
20 |
1.000 (25.40) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
S0422XXXXX |
22 |
1.100 (27.94) |
.500 (12.70) |
.400 (10.16) |
.093 (2.36) |
|
S0624XXXXX |
24 |
1.200 (30.48) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
S0628XXXXX |
28 |
1.400 (35.56) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
S0632XXXXX |
32 |
1.600 (40.64) |
.700 (17.78) |
.600 (15.24) |
.125 (3.18) |
|
S0640XXXXX |
40 |
2.000 (50.80) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
| FIG 1 | FIG 2 |
 |
 |
| Fig 3 : ULX |
Table 1 |
X |
Y |
Z |
LOOSE PIN NO. |
 |
ULR/SLR |
.199 (5.05) |
.124 (3.15) |
.019 (0.48) |
3172 |
|
ULG/SLG |
.240 (6.09) |
.124 (3.15) |
.019 (0.48) |
3159 |
|
|
ULM/SLM |
.272 (6.91) |
.124 (3.15) |
.019 (0.48) |
3166 |
|
|
ULC/SLC |
.300 (7.62) |
.124 (3.15) |
.019 (0.48) |
3011-3 |
|
|
ULB/SLB |
.350 (8.89) |
.124 (3.15) |
.019 (0.48) |
3011-2 |
|
|
ULL/SLL |
.400 (10.16) |
.124 (3.15) |
.019 (0.48) |
3011-5 |
|
|
ULS/SLS |
.493 (12.52) |
.139 (3.53) |
.019 (0.48) |
3191 |
|
|
ULN/SLN |
.512 (13.00) |
.124 (3.15) |
.019 (0.48) |
3171 |
|
|
ULT/SLT |
.524 (13.31) |
.139 (3.53) |
.019 (0.48) |
3192 |
|
|
ULF/SLF |
.634 (16.10) |
.124 (3.15) |
.019 (0.48) |
3157 |
|
|
ULE/SLE |
.665 (16.89) |
.124 (3.15) |
.019 (0.48) |
3156 |
|
|
ULD/SLD |
.809 (20.56) |
.163 (4.14) |
.019 (0.48) |
3014 |
|
|
ULA/SLA |
.875 (22.23) |
.124 (3.15) |
.019 (0.48) |
3011-1 |
ORDERING INFORMATION
|
ULX |
3 |
18 |
TL |
A |
31 |
|
Series |
DIP Spacing |
Pin Number |
Plating 0f Sleeve |
Loose Pin Number |
Plating of Inner Contact |
|
ULX (Open Frame) |
0 – strip socket only |
TL – Tin Lead 200µ” (5.08µm) |
A or leave blank |
30 – GoId 10µ” (0.25µm) |
|
| LX (Closed Frame) |
3 – .300 (7.62) centers |
TB – Tin Lead 150µ” (3.80µm) |
See Fig 3 |
31 – GoId 30µ” (0.75µm) |
|
| SLX (Single in line, Strip) |
4 – .400 (10.16) centers |
GH – GoId lOµ” (0.25µm) |
See |
36 – Tin Lead 200µ”(5.08µm) |
|
| For LX See table 1 : Heigth of elevator |
6 – .600 (15.24) centers |
TF – Tin 200µ” (5.08µm) |
36F – Tin Lead 200µ”(5.08µm) with lubricant |
||
| 9 – .900 (22.86) centers | 34 – Tin 200µ”(5.08µm) | ||||
| & |
Specifications:
- Inner Contact – BeCu per QQ-C-533
- Outer Sleeve – Brass per QQ-B-626
- Insulator – Glass-filled Polyester Rated to UL94V-O
- Operating Temperature -650C to +1250C
- Soldering – Wave soldering only (1750C for 15 seconds)
- PCB Thickness – .062 (1.57) to .125 (3.18)
- PCB Hole Size – .035 +/- .003 (0.89 +/- 0.08) solder termination
- All Platings – Over 50 µ” (1.27 µm) minimum Nickel over 5 µ” (0.13 µm) minimum Copper
- IC Pin Dimension Range – .016 (0.41) to .025 (0.63) round, .125 (3.18) minimum length
