UWW / WW
Open Frame Wire-Wrap® Dip Socket

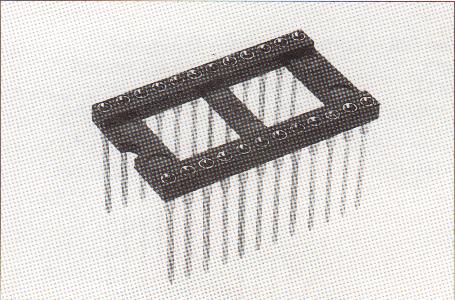

Open Frame Wire-Wrap® Dip Socket (UWW)
- Open insulator with ladder construction.
- Sockets are XY stackable.
- Machined outer sleeve with BeCu inner contact.
- Socket pins feature closed-end construction eliminating any solder wicking problems.
- Socket pins available in a wide variety of styles and plating options.
- Available with 2, 3 level Wire_Wrap length
|
Standard Parts |
DIMENSIONS (See Fig. 1) |
||||
|
PART NUMBER |
NUMBER OF PINS |
A |
B |
C |
D |
|
UWW306XXXXX |
6 |
.300 (7.62) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
UWW308XXXXX |
8 |
.400 (10.16) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
UWW314XXXXX |
14 |
.700 (17.78) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
UWW316XXXXX |
16 |
.800 (20.32) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
UWW318XXXXX |
18 |
.900 (22.86) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
UWW320XXXXX |
20 |
1.000 (25.40) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
UWW422XXXXX |
22 |
1.100 (27.94) |
.500 (12.70) |
.400 (10.16) |
.093 (2.36) |
|
UWW324XXXXX |
24 |
1.200 (30.48) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
UWW624XXXXX |
24 |
1.200 (30.48) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
UWW328XXXXX |
28 |
1.400 (35.56) |
.400 (10.16) |
.300 (7.62) |
.125 (3.18) |
|
UWW628XXXXX |
28 |
1.400 (35.56) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
UWW632XXXXX |
32 |
1.600 (40.64) |
.700 (17.78) |
.600 (15.24) |
.125 (3.18) |
|
UWW640XXXXX |
40 |
2.000 (50.80) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
UWW648XXXXX |
48 |
2.400 (60.96) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
UWW964XXXXX |
64 |
3.200 (81.28) |
1.000 (25.40) |
.900 (22.86) |
.093 (2.36) |
Closed Frame Wire-Wrap®Dip Socket (WW)
- Closed insulator.
- Sockets are XY stackable.
- Machined outer sleeve with BeCu inner contact.
- Socket pins feature closed-end construction eliminating any solder wicking problems.
- Socket pins available in a wide variety of styles and plating options.
- Available with 2, 3 level Wire_Wrap length.
|
Standard Parts |
DIMENSIONS (See Fig. 1) |
||||
|
PART NUMBER |
NUMBER OF PINS |
A |
B |
C |
D |
|
WW308XXXXX |
8 |
.400 (10.16) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
WW314XXXXX |
14 |
.700 (17.78) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
WW316XXXXX |
16 |
.800 (20.32) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
WW318XXXXX |
18 |
.900 (22.86) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
WW320XXXXX |
20 |
1.000 (25.40) |
.400 (10.16) |
.300 (7.62) |
.093 (2.36) |
|
WW422XXXXX |
22 |
1.100 (27.94) |
.500 (12.70) |
.400 (10.16) |
.093 (2.36) |
|
WW624XXXXX |
24 |
1.200 (30.48) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
WW628XXXXX |
28 |
1.400 (35.56) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
|
WW632XXXXX |
32 |
1.600 (40.64) |
.700 (17.78) |
.600 (15.24) |
.125 (3.18) |
|
WW640XXXXX |
40 |
2.000 (50.80) |
.700 (17.78) |
.600 (15.24) |
.093 (2.36) |
| FIG 1 | FIG 2 |
 |
|
ORDERING INFORMATION
|
UWW |
3 |
18 |
TL |
A |
31 |
|
Series |
DIP Spacing |
Pin Number |
Plating 0f Sleeve |
Loose Pin Number |
Plating of Inner Contact |
|
UWW (Open) |
3 – .300 (7.62) centers |
TL – Tin Lead 200µ” (5.08µm) |
Solder Tail Length See Fig 2 x- E ( E )………..xxxx-x |
31 – GoId 30µ” (0.75µm) |
|
|
WW (Closed) |
4 – .400 (10.16) centers |
TB – Tin Lead 150µ” (3.80µm) |
2 – .360 (9.15) . . . . . ..3001-2 |
30 – GoId 10µ” (0.25µm) | |
|
6 – .600 (15.24) centers |
GH – GoId lOµ” (0.25µm) |
3 – .500 (12.70) . . . . ..3001-3 |
|||
| TF – Tin 200µ” (5.08µm) |
Specifications:
Inner Contact – BeCu per QQ-C-533.
Outer Sleeve – Brass per QQ-B-626.
Insulator – Glass-filled Polyester Rated to UL94V-O.
Operathg Temperature – -650C to +1250C.
PCB Hole Size – .035 +- .003 (0.89 +- 0.08) solder termination.
Ail Platings – Over 100 µ” (2.54 µm) minimum Nickel over 5 µ” (013 µm) minimum Copper.
IC Pin Dimension Range – .016 (0.41) to .025 (0.63) round, .125 (318) minimum length,
.009 (0.23) x .015 (0.38) to .015 (0.38) x .022 (0.56) rectangular.
Insertion Force – 186 grams.
Withdrawal Force – 92 grams.
